MARS JARD START CAPACITOR 324-388 MFD 110/125V

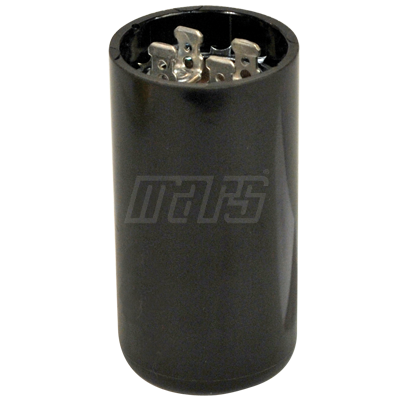

Motor Start Capacitor – 324-388 µF, 110/125V, Round

This round motor start capacitor is designed for intermittent-duty starting applications in AC motors. It features a hermetically sealed phenolic case that protects against oil, dirt, grease, and moisture, and two terminals for secure connections — making it ideal for HVAC and refrigeration compressor start support. :contentReference[oaicite:0]{index=0}

Technical Specifications:

• Product Type: Motor Start Capacitor
• Design: Round, Electrolytic
• Application: AC Motor Start
• Capacitance: 324-388 µF
• Voltage Rating: 110/125 VAC
• Frequency: 50/60 Hz
• Case Material: Phenolic (Hermetically Sealed) :contentReference[oaicite:1]{index=1}
• Overall Dimensions: ~1.437″ Diameter × 2.75″ Height :contentReference[oaicite:2]{index=2}
• Number of Terminals: 2 :contentReference[oaicite:3]{index=3}
• Operating Temperature: -40°C to +65°C :contentReference[oaicite:4]{index=4}
• Certifications: UL, CUL :contentReference[oaicite:5]{index=5}
