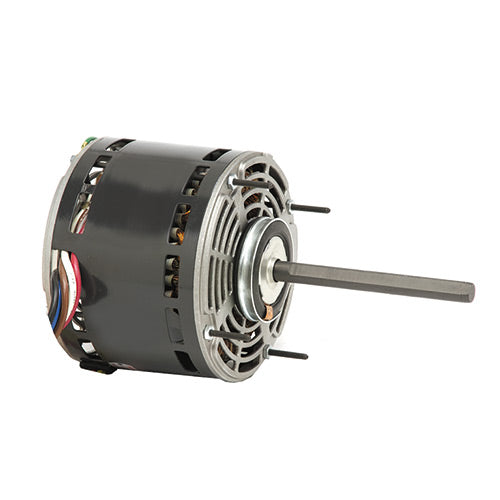

US MOTOR 1HP 1075/3 208/230 - EVAPORATOR MOTOR (BD1106)
Description
Direct Drive Fan &
Blower Motor – 8907
This fan and blower motor is designed for direct drive HVAC air movement applications where reliable multi-speed performance is required. MotorBoss identifies model 8907 as a permanent split capacitor motor with open air over construction, stud or hub ring mounting, and reversible rotation, making it suitable for demanding service and replacement applications.
Standard Features:
- Product type: Fan and blower motor
- Model/Part number: 8907
- Manufacturer model: K055AAY1130012B
- Horsepower: 1 HP
- Motor type: Permanent split capacitor
- Application: Direct drive fan and blower
- Motor enclosure: OAO
- Diameter: 5.6 inch
- Phase: 1 phase
- Voltage: 208-230 volt
- Frequency: 60 hertz
- Poles: 6
- Speeds: 3
- RPM: 1075
- Frame: 48
- Mounting: Stud or hub ring
- Rotation: CCW lead end reversible
- Run capacitor: 20 MFD, 370 volt
- Thermal protection: Automatic reset
- Ambient rating: 40 deg C
- Insulation class: B
- Full load amps: 5.6 A
