MARS CONTACTOR 60A 3P 230 VOLTS AUXILIAR CONTACTORS SERIES 780F - 61472

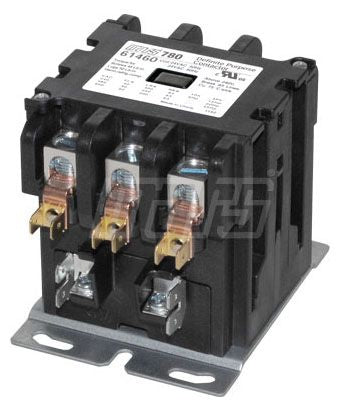

Definite Purpose Contactor – 3 Pole, 60A, 208-240V AC Coil, Enclosed

This enclosed 3-pole definite purpose contactor is designed for refrigeration, air conditioning, and electric heating systems. Featuring a 208-240 VAC coil, silver cadmium oxide contacts, and a durable thermoplastic housing, it provides reliable switching performance for high horsepower HVAC applications.

Technical Specifications:

• Product Type: Definite Purpose Contactor
• Type: Enclosed
• Number of Poles: 3
• Current Rating: 60 Amp
• Inductive Rating: 60 Amp
• Resistive Rating: 75 Amp
• Coil Voltage: 208-240 Volt AC
• Frequency: 50/60 Hz
• Horsepower Rating:
  • 7.5 HP at 240V (1-Phase)
  • 20 HP at 240V (3-Phase)
  • 25 HP at 480V (3-Phase)
  • 30 HP at 600V (3-Phase)
• Locked Rotor Amps:
  • 360A at 240V
  • 300A at 480V
  • 240A at 600V
• Terminal Type: Box Lug / Dual Quick-Connect
• Wire Size: Up to 2 AWG
• Contact Material: Silver Cadmium Oxide
• Insulation Class: Class F
• Housing Material: Thermoplastic
• Dimensions: 2.87″ W × 4.04″ D × 3.11″ H
• Application: Refrigeration, Air Conditioning, Electric Heating &
  HVAC Systems
• Approval: UL
