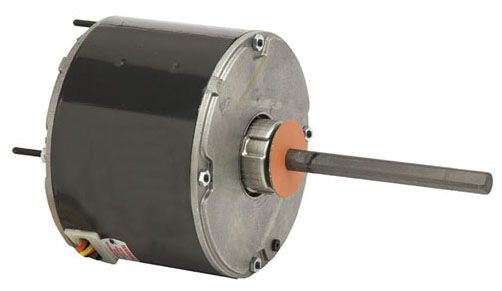

US MOTOR 1/2HP 1075 BALL BEARING - 220V Cond. (22730)
Description
Condenser Fan Motor
Enclosure Type TEAO
Power Rating 1/2 HP
Voltage Rating 208 to 230 Volt AC 1-Phase
Frequency Rating 60 Hertz
Motor FLA 3.1 Amp
Number of Speeds 1
Speed Rating 1075 RPM
Reversible Yes
Service Factor 1
NEMA Frame Size 48Y
Insulation Class B
Mounting Stud/Band
Weight 16.98 Pound
Application HVAC/R, Residential, Commercial
Motor Type Permanent Split Capacitor, FHP
Bearing Type Ball
End Connection 8 Inch-32 TPI UNC Threaded
Diameter 5.6 Inch
Torque Rating 74.23 Ounce-Foot (Breakdown), 13.93 Ounce-Foot (Locked Rotar)
Number of Poles 6
Shell Size 5.3 Inch
Capacitance 10 Microfarad at 370 Volt
Rotation Counterclockwise Lead End Reversible
Duty Cycle Continuous
Temperature Rating 140 Deg F
Includes Extended Stud, 30 Inch Lead, Water Slinger, Automatic Reset Thermal Overload Protector, Warning Label, Drain Plug
