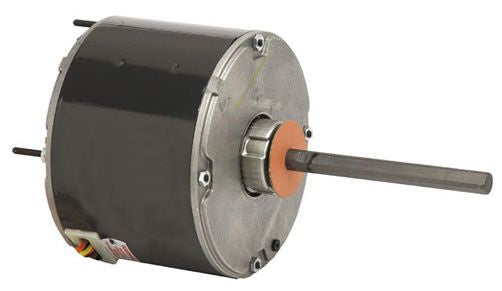

MOTOR 3/4HP S/S 1075RPM 460 1PH - T/E B/B
Description
Condenser Fan Motor
Enclosure Type TEAO
Power Rating 3/4 HP
Voltage Rating 460 Volt AC 1-Phase
Frequency Rating 60 Hertz
Motor FLA 2 Amp
Number of Speeds 1
Speed Rating 1075 RPM
Reversible Yes
Service Factor 1
NEMA Frame Size 48YZ
Insulation Class B
Mounting Stud
Weight 21 Pound
Application HVAC/R, Residential, Commercial
Motor Type Permanent Split Capacitor, FHP
Bearing Type Ball
End Connection 8 Inch-32 TPI UNC Threaded
Diameter 5.6 Inch
Torque Rating 78.69 Ounce-Foot (Breakdown), 16.97 Ounce-Foot (Locked Rotar)
Number of Poles 6
Shell Size 6.4 Inch
Capacitance 10 Microfarad at 370 Volt
Rotation Reversible
Duty Cycle Continuous
Temperature Rating 140 Deg F
Includes Extended Stud, 36 Inch Lead, Hub Ring, Automatic Reset Thermal Overload Protector
